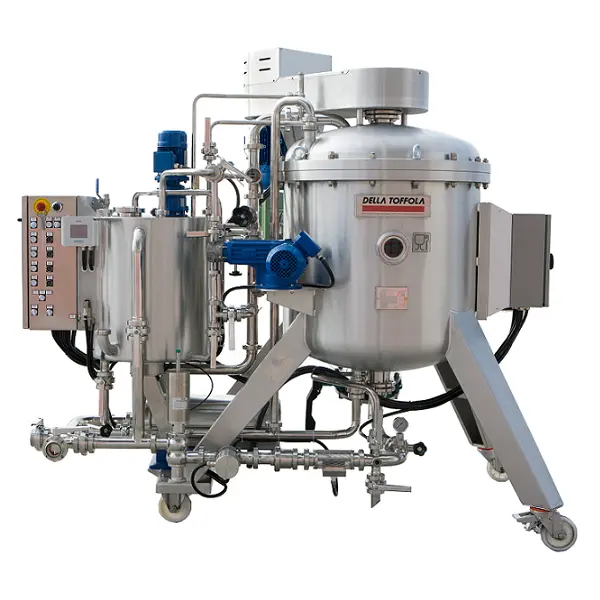

Horizontal Disk Kieselgur F. Description

Done correctly, filtering with kieselgur (or micro-filtering) enables a crystal-clear product to be obtained without interfering with its organoleptic qualities, and avoiding the need to perform thermal treatments or sterile filtering processes.
The NF automatically discharged horizontal disk kieselgur filters are suitable for filtering beer and perfect for filtering operations on large amounts of liquid with low percentages of solids in suspension because they combine very rapid working times with excellent filtering results.

This type of filter relies on a unique system that keeps the filter cake intact even in the case of accidental interruptions in the filtering process. The centrifugal discharging of the cake makes the emptying and cleaning operations quick and easy, and servicing procedures also take up very little time because the filter’s structure has been designed to facilitate these activities to the utmost.
Manufactured in accordance with the 97/23/EC PED directive, these filters are made of AISI 304 stainless steel, while the reduction units and electric motors are protected with an acid-proof epoxy-based paint. They are available in various models from 5 to 50 m².

  • Horizontal Disk Kieselgur F. filters are designed specifically for beer filtration, ensuring that the beer’s organoleptic qualities are preserved.
  • The filters do not require thermal treatments or sterile filtration, making them suitable for large amounts of liquid with low solids content.
  • A unique system is used to keep the filter cake intact during interruptions in the filtering process, ensuring that the filtration process is not compromised.
  • The filters have a centrifugal discharge mechanism, allowing for easy cleaning and minimal servicing time.
  • The filters are PED compliant, meaning they meet the safety and health requirements set out in the 97/23/EC PED directive.
  • The filters are made of AISI 304 stainless steel, which is resistant to corrosion and rust, and the reduction units and electric motors are protected with an acid-proof epoxy-based paint.
  • The filters are available in various models with filtration areas ranging from 5 to 50 square meters, making them suitable for a wide range of applications.
  • The filters are designed to satisfy customers with cursed perfection, ensuring the highest quality of beer filtration.
  • The filters are designed to reduce system downtime with dedicated service, ensuring that the filtration process is not interrupted for long periods of time.
  • The filters are eco-friendly, making them a sustainable choice for beer filtration.
  • Hygiene construction, suit the needs of a particular client.
  • Satisfy customers with brewed perfection
  • Reduce system downtime with dedicated service
  • Ecofriendly

Request for Product Specifications

Maintenance and Support
Accessories & Spare Parts
Send a Query
Get a Quote Catalogue

Other products in this category

Stabilizer Dissolution System
Beer Pasteurizing Units
Beer Storage Tanks
Crossflow Filters For Beer
Horizontal Disk Kieselgur F.
Omnia B.
Innovative Ice Cream Production Techniques to Watch Out for in 2025
Read More
How Conveyor Belts Revolutionize Grape Processing in Large-Scale Wineries
Read More
How to Avoid Wine Loss During Filtration with Rotary Vacuum Filters
Read More
Manual vs. Automated Ice Cream Plants: Pros and Cons for Dairy Businesses
Read More
From Milk to Curd: Yoghurt Plant Process Explained
Read More
Step-by-Step Yoghurt Plant Setup: Guide to Maximum Efficiency
Read More

Our Blogs

Know More

Related case studies

Case Studies

Don’t just take our word for it. See how our solutions are helping our clients exactly the way they should be.

Know More
Innovative Continuous Sugar Dissolving Solutions
Food & beverage solutions

Frequently Asked Questions

A horizontal disk kieselgur filter is a type of filtration system that uses a bed of diatomaceous earth, also known as kieselgur, to filter impurities and particles out of beer. The beer is passed through the filter, where the kieselgur adsorbs impurities and particles, resulting in a clearer and more consistent product.

The kieselgur bed in a horizontal disk filter is prepared by filling the filter with a layer of kieselgur, which is then compacted to create a dense and uniform bed. The bed is then maintained by regularly backwashing the filter to remove impurities and particles that have been adsorbed by the kieselgur.

The flow rate of beer through the filter can affect the efficiency of the horizontal disk kieselgur filter. Higher flow rates can lead to increased pressure on the kieselgur bed, which can cause it to become clogged more quickly. Lower flow rates can result in longer filtration times, which can also affect the efficiency of the filter.

A kieselgur bed in a horizontal disk filter should be replaced when it becomes clogged or damaged. Additionally, if the flow rate of beer through the filter becomes significantly reduced, it may be time to replace the kieselgur bed.

The alcohol content of the beer can affect the efficiency of the horizontal disk kieselgur filter. Higher alcohol content can cause the beer to become more viscous, which can make it more difficult for it to pass through the kieselgur bed.

Horizontal disk kieselgur filters are typically used for beer, but they can also be used to filter other types of liquids such as wine and juice.

The temperature of the beer can affect the efficiency of the horizontal disk kieselgur filter. Colder temperatures can cause the beer to become more viscous, which can make it more difficult for it to pass through the kieselgur bed. Warmer temperatures can cause the beer to expand, which can also affect the efficiency of the filter.

The kieselgur filter can remove impurities and particles that can affect the taste of beer, resulting in a clearer and more consistent product.

Horizontal disk kieselgur filters can be more expensive than other types of filters, such as gravity filters, due to the cost of the kieselgur and the need for regular maintenance. However, they are also more efficient and can produce a higher quality product.

The use of a horizontal disk kieselgur filter in the beer making process can have some environmental impact, as the kieselgur and the cleaning chemicals used to maintain the filter can be harmful if not disposed of properly. Additionally, the backwashing process can consume a significant amount of water.
