Vacuum solutions
Clients
Alembic Pharma, UPL, Aristo Pharma, Decbectochem
Category description
Product description
Features
Applications
Product specifications
Product description

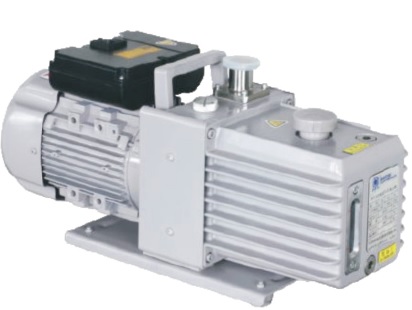

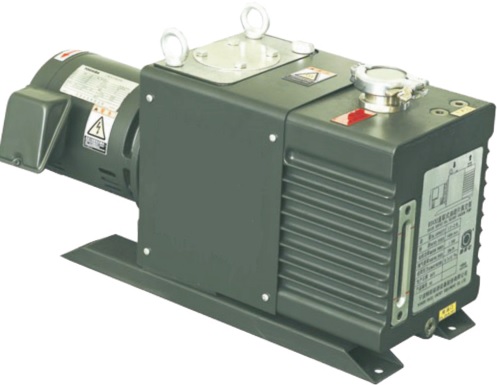

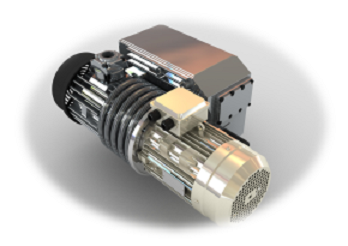

- The Rotary Vane Pump is a mechanical device that uses a rotor with sliding vanes to generate high vacuum pressure, making it suitable for a range of industrial and scientific applications such as vacuum packaging, degassing, and process drying.
- It operates on the rotary vane principle, where the motion of the rotor draws in a fluid and the sliding vanes trap and compress the fluid as it is pumped through the system.
- These pumps are known for their high efficiency and low maintenance requirements, as they have few moving parts and are resistant to wear and corrosion.
- They are often made from high-quality materials such as stainless steel or aluminum to withstand the high pressures and temperatures encountered during operation.
- The pumps may also feature specialized coatings or seals to enhance performance and durability.
- The pumps come with direct drive, multi-vane and rugged construction and Carbon composite vane material for long life.
- No cooling utilities are required as these pumps are designed with Air cooling arrangements.
- They are suitable for operating in continues fluctuating vacuum level at high intake pressure.
- They are designed with continuous filtration of oil at separate oil reservoir keeps the pump free of contamination.
- Oil-free exhaust gas over the entire range of operating pressure, from atmospheric pressure to ultimate pressure.
- A non-return valve is included to prevent oil entry in to the system in the event of power failure.
- The pump use less than 10% of oil when compared to oil immersed vacuum pump.
- The system is designed to operate at 80 Deg. C enhancing moisture and vapour handling capacity.
- Applications include vacuum packaging, powder transfer systems, pick and place/holding central vacuum systems for hospitals, medical/dental vacuum, electronic assembly, plastic thermoforming, food processing, and process industry (distillation, packing drying, solvent recovery).
- High-quality Rotary Vane Vacuum Pumps that are known for their reliability and effectiveness. These mechanical pumps are a reliable choice for a variety of tasks requiring high vacuum pressure.
Features
- These pumps come with direct drive, multi-vane and rugged construction and Carbon composite vane material for long life.
- No cooling utilities are required as these pumps are designed with Air cooling arrangements.
- Pumps are suitable for operating in continues fluctuating vacuum level at high intake pressure.
- Pumps are designed with continuous filtration of oil at separate oil reservoir keeps the pump free of contamination.
- No pollution – Oil free exhaust gas over the entire range of operating pressure – from atmospheric pressure to ultimate pressure
- Non-return valve to prevent oil entry in to the system in the event of power failure.
- The pump use less than 10% of oil when compared to oil immersed vacuum pump.
- The system is designed to operate at 80 Deg. C enhancing moisture and vapour handling
capacity. “
Applications
- Vacuum Packaging
- Powder Transfer System
- Pick and Place / Holding Central Vacuum Systems for Hospitals
- Medical/Dental Vacuum
- Electronic Assembly
- Plastic Thermoforming
- Food Processing
- Process Industry ( Distillation/Packing Drying/Solvent Recovery)
Product specifications
Rotary Vane Vacuum Pumps find applications in:
- Food Processing
- PCB
- Metallurgy
- Packaging
- Hot press
- Vacuum Lifting
- Laboratories
- Plastic Molding
- Rubber Press Molding
- Wood Carving
Variants
Case
studies
Don’t just take our word for it. See how our solutions are helping our clients exactly the way they should be.
Frequently Asked Questions
A rotary vane vacuum pump is a mechanical pump that uses a rotating vaned rotor to create a vacuum. It is commonly used in various applications such as manufacturing processes, scientific research, and medical equipment. Economy Process Solutions is a leading manufacturer of vacuum pumps in India
A rotary vane vacuum pump consists of a rotor with vanes that rotate inside a cylindrical chamber. The vanes are mounted on the rotor and are free to slide in and out, sealing against the chamber wall. As the rotor rotates, the vanes trap and compress pockets of air, which are then expelled through an exhaust port, creating a vacuum.
Some advantages of using rotary vane vacuum pump economy process solutions include:
High flow rate: Rotary vane pumps can move a large volume of air quickly and efficiently.
Compact size: Rotary vane pumps are typically smaller and more portable than other types of pumps.
Low noise: Rotary vane pumps operate quietly, making them suitable for use in noise-sensitive environments.
Durability: Rotary vane pumps are generally rugged and reliable, with a long lifespan.
Yes, there are a few special considerations to keep in mind when using a rotary vane vacuum pump:
Vibration: Rotary vane pumps can produce significant vibration, which can be transmitted to other equipment and structures. It is important to mount the pump on a stable, vibration-damping surface to minimize this effect.
Lubrication: Rotary vane pumps require lubrication to operate properly. It is important to use the correct type and amount of lubricant and to replace it at the recommended intervals.
Operating temperature: Rotary vane pumps have a limited operating temperature range. It is important to ensure that the pump is not operated outside of this range, as doing so can damage the pump and shorten its lifespan.
When selecting a rotary vane vacuum pump, it’s important to consider factors such as the type and volume of the fluid being pumped, the required vacuum level, and the overall cost of the pump. It’s also important to choose a pump from a reputable manufacturer with a proven track record of quality and reliability.
Economy Process Solutions Pvt. Ltd is a leading provider of vacuum and process solutions in India since 1926. Our commitment to quality and innovation has made us a trusted choice for businesses globally.
