Unlocking the Potential: Understanding the Principles and Components of Agitated Thin Film Evaporators

Agitated Thin Film Evaporators or ATFEs are specialized equipment used for liquid to liquid or liquid to solid separation processes. These evaporators operate on the basic principle of creating a thin film of the feed material on a heated surface, allowing for efficient evaporation and concentration. But in order to understand its benefits, we first need to get an insight to the agitated thin film evaporator working principle.

In this guide, we are going to discuss the agitated thin film evaporator working principle in detail along with some critical aspects of the device such as the benefits of agitated thin film evaporator, applications of agitated thin film evaporator, and more. So make sure you stick until the end so that you can find the best agitated thin film evaporator for your business.

If you are looking for agitated thin film evaporator manufacturers, you are in luck. Economy Solutions is one of the most trusted vacuum & process solutions provider in Mumbai. We offer excellent solutions for all your business needs. Whether you are looking for a vacuum pump or a pilot plant, we have got it covered.

Working Principle of Agitated Thin Film Evaporators

Agitated thin film evaporators operate on an intricate principle that combines mechanical agitation and heat transfer to achieve efficient separation and concentration of liquid mixtures. Here are the key aspects of agitated thin film evaporator working principle:

Formation of Thin Film

In an ATFE, the feed liquid which contains heat-sensitive components is introduced into a cylindrical vessel. The vessel’s inner surface is heated, creating a thin, turbulent film of the liquid. There is also an agitator that is usually a rotating blade which ensures continuous renewal of this thin film by spreading it across the heated surface. The thin film is crucial because it maximizes the surface area available for evaporation.

Heat Transfer & Evaporation

As the thin film flows down the heated surface, the volatile components (solvents) begin to evaporate. The heat from the vessel causes these volatile components to transition from liquid to vapor phase. Then, the remaining concentrated liquid continues its downward flow. The rapid evaporation minimizes the residence time of the liquid in the evaporator, reducing the risk of thermal degradation.

Efficiency & Enhancements

Apart from the basic functionality, there are also some things that matter the most in terms of efficiency. The thin film ensures efficient heat transfer between the heated surface and the liquid. The short distance between the liquid and the heated wall allows for rapid energy exchange. This continuous renewal of the film prevents buildup and maintains efficient heat transfer. Since the liquid spends minimal time at elevated temperatures, sensitive compounds remain intact.

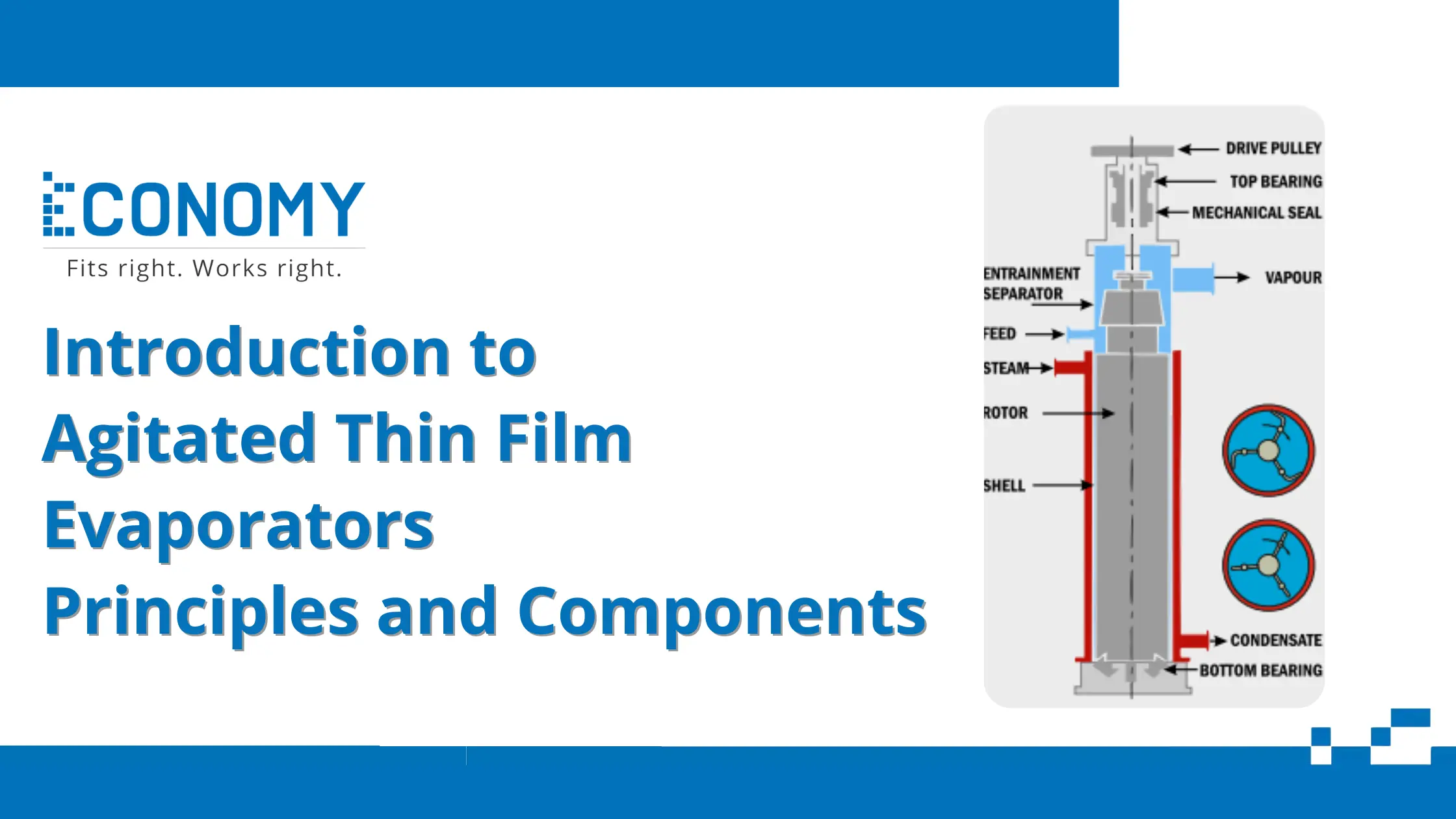

Components of Agitated Thin Film Evaporators

Now that we are familiar with the agitated thin film evaporator working principle, let us talk about the components of the equipment in detail. Knowing the components in detail will help you understand the nuisances of the tool so that you can perform timely maintenance and even replace the right component if it fails.

Rotor

The rotor plays a central role in ATFEs. It is typically a rotating blade or paddle located inside the cylindrical vessel. The rotor ensures continuous renewal of the thin film of liquid on the heated surface by spreading the liquid across the inner wall, preventing fouling and promoting efficient heat transfer.

Jacketed Vessel

The jacketed vessel is the main body of the ATFE. It consists of a cylindrical chamber with an outer jacket. The jacket allows for precise temperature control. Heat transfer fluid circulates through the jacket, maintaining the desired temperature on the inner surface.

Condenser

The condenser is an integral part of the ATFE system, positioned at the top or side of the vessel. It collects the vaporized components evaporated from the thin film. The vapor condenses back into liquid form, which can be further processed or collected.

Feed Inlet

The feed inlet is the point where the liquid mixture enters the ATFE. It introduces the feed material (often containing dissolved solids, solvents, or other components) into the system.

Vacuum System

The vacuum system maintains low pressure within the ATFE. The vacuum operation enhances heat transfer rates and prevents thermal degradation of heat-sensitive materials.

Operation of Agitated Thin Film Evaporators

Agitated Thin Film Evaporators are widely used in various industries for efficient separation. Let’s take a look at the overall operation of the equipment to get a clear idea about the agitated thin film evaporator working principle.

Feed Introduction

• The process begins by introducing the liquid mixture (the feed) into the ATFE.

• The feed enters through the feed inlet, which ensures uniform distribution across the heated surface.

• Proper feed distribution is crucial to maintain a continuous thin film on the inner wall of the vessel.

Thin Film Formation

• As the feed flows down the inner surface of the cylindrical vessel, it forms a thin, turbulent film.

• The rotating agitator (rotor) plays a vital role here. It spreads the liquid film across the heated wall, preventing stagnation and fouling.

• The thin film maximizes the surface area available for evaporation.

Heat Transfer

• The heated surface of the vessel rapidly evaporates the volatile components from the thin film.

• The heat transfer occurs between the liquid film and the heated wall.

• The volatile components transition from liquid to vapor phase due to the elevated temperature.

• The remaining concentrated liquid continues its downward flow.

Condensation

• The vaporized components rise and exit the thin film region.

• The condenser, positioned at the top or side of the vessel, collects the vapor.

• In the condenser, the vapor condenses back into liquid form.

• The condensed liquid can be further processed or collected as the concentrated product.

Benefits of Agitated Thin Film Evaporators

Agitated Thin Film Evaporators offer several advantages that make them an indispensable tool for various industries.

• The rapid evaporation of volatile components occurs within this thin film, resulting in efficient energy transfer.

• The thin film principle significantly reduces the residence time of the liquid within the evaporator.

• The gentle treatment minimizes product degradation, ensuring high-quality output.

• Their efficient heat transfer capabilities allow achieving the desired results without requiring large equipment.
